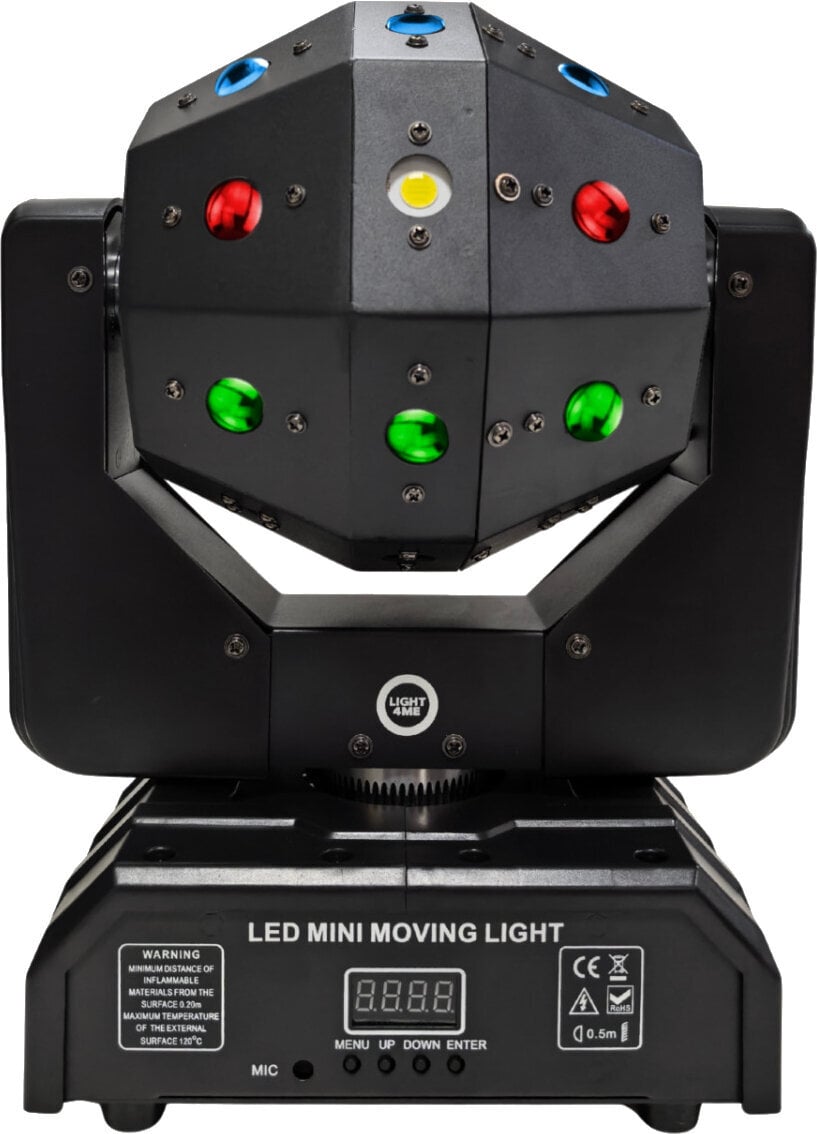

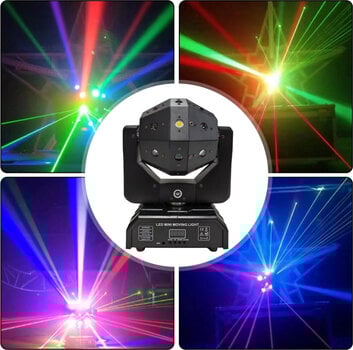

Light4Me ATLAS — 4-in-1 Moving Head Light Effect

Light4Me ATLAS combines a beam, white strobe, and dual red/green lasers into one moving head fixture, replacing multiple separate units. Built for DJs and event companies, it delivers plug-and-play performance for clubs, stages, weddings, and corporate events. Adapt to any setup with music-controlled programs and DMX integration for hands-free auto shows or programmed desks. The ABS and iron housing keeps the unit at 4.35 kg for mobile setups.

Four Light Sources in One Moving Head

Unlike single-purpose fixtures, this model integrates RGBW beam, white strobe, red laser, and green laser into one moving head with infinite tilt rotation. Combined with continuous 360° tilt, the 540° pan range enables sweeping motion that static effects cannot replicate. Quick on-site configuration is supported by a 7-segment LED display with adjustable backlight.

Light Sources and Optical Performance

The optical engine uses three independent emitter groups, each tuned for a specific visual task. Concentrating output into sharp aerial rays, the narrow 5° beam angle keeps beams defined at distance across mid-sized rooms.

• Beam LEDs feature 16x 3 W RGBW emitters providing saturated colors and clean white tones from one array.
• Strobe LEDs: 4x 15 W white — adjustable 0-20 Hz for impact moments and beat drops
• Lasers: 2x 100 mW red + 2x 50 mW green — sharp aerial patterns that cut through haze and fog

Movement, DMX, and Operating Modes

Movement and LED macros with adjustable speed build complex looks without deep programming, while 16/18-channel DMX unlocks advanced control. Responds to live music via sound-active mode with adjustable microphone sensitivity.

• Pan: 0-540° with Pan Fine — wide horizontal sweep covers the full width of most stages
• Tilt: 0-360° infinite rotation — continuous vertical motion for uninterrupted aerial effects
• DMX: 16/18 channels via 3-pin XLR — standard professional control with two mode options
• Operating modes include Auto, Sound, Master/Slave, and DMX, which provide flexibility for any operator skill level.

Build Quality, Power, and Installation

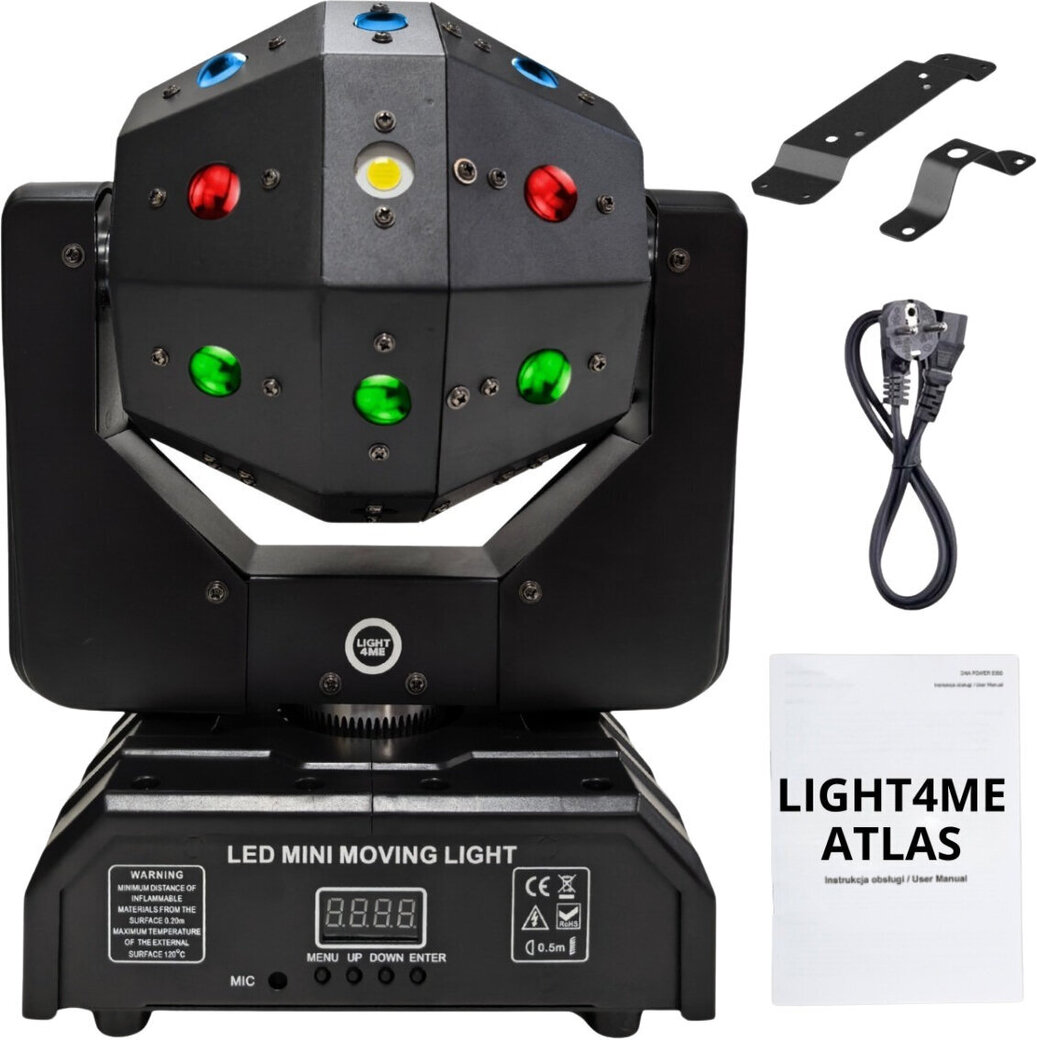

Built for repeated mobile use, the unit ships with a powder-coated steel mounting bracket, omega clamp, and wall bracket. Active fan cooling keeps modules stable during long events.

• Housing construction uses ABS plastic and iron, ensuring a lightweight yet rigid profile for easy transport and truss mounting.
• Dimensions: 26 x 16.5 x 33 cm — compact footprint fits standard lighting rigs
• Weight: 4.35 kg — manageable for single-operator setup and breakdown
• Power: 120 W via IEC C14, AC 100-240 V — worldwide voltage compatibility for touring
• IP Rating: IP20 — indoor dry-location use only
